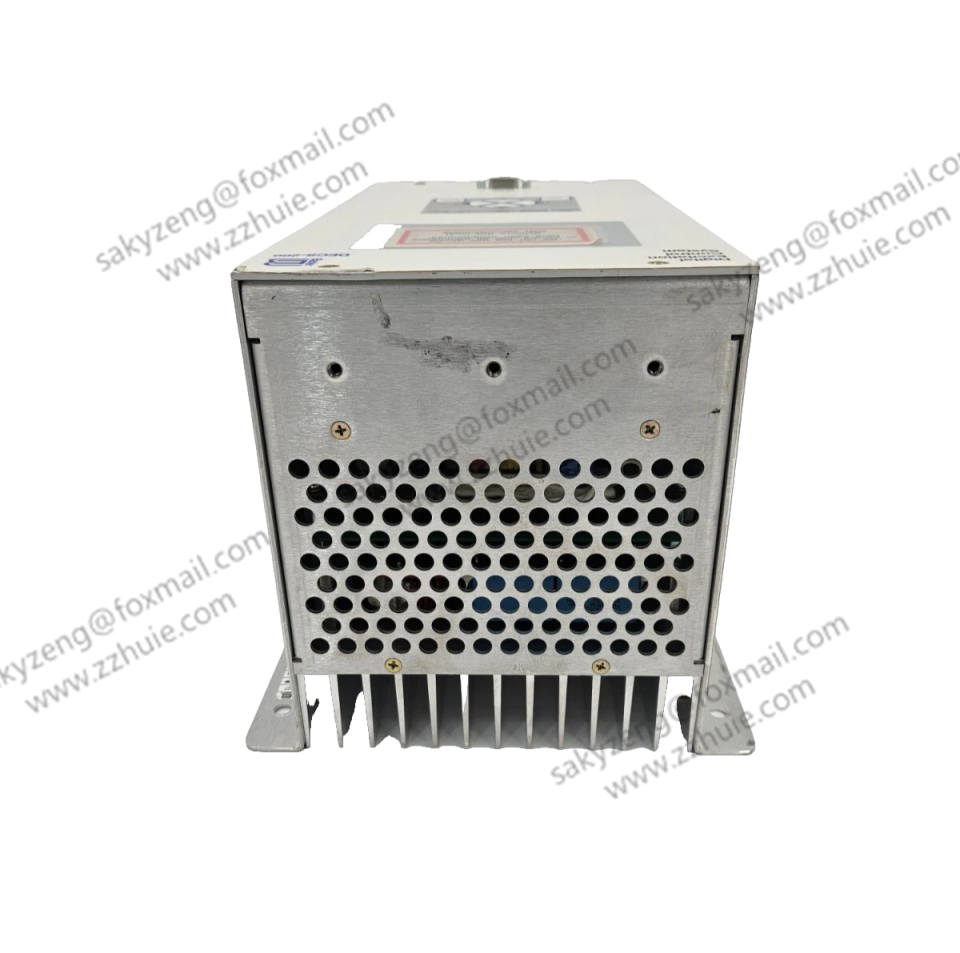

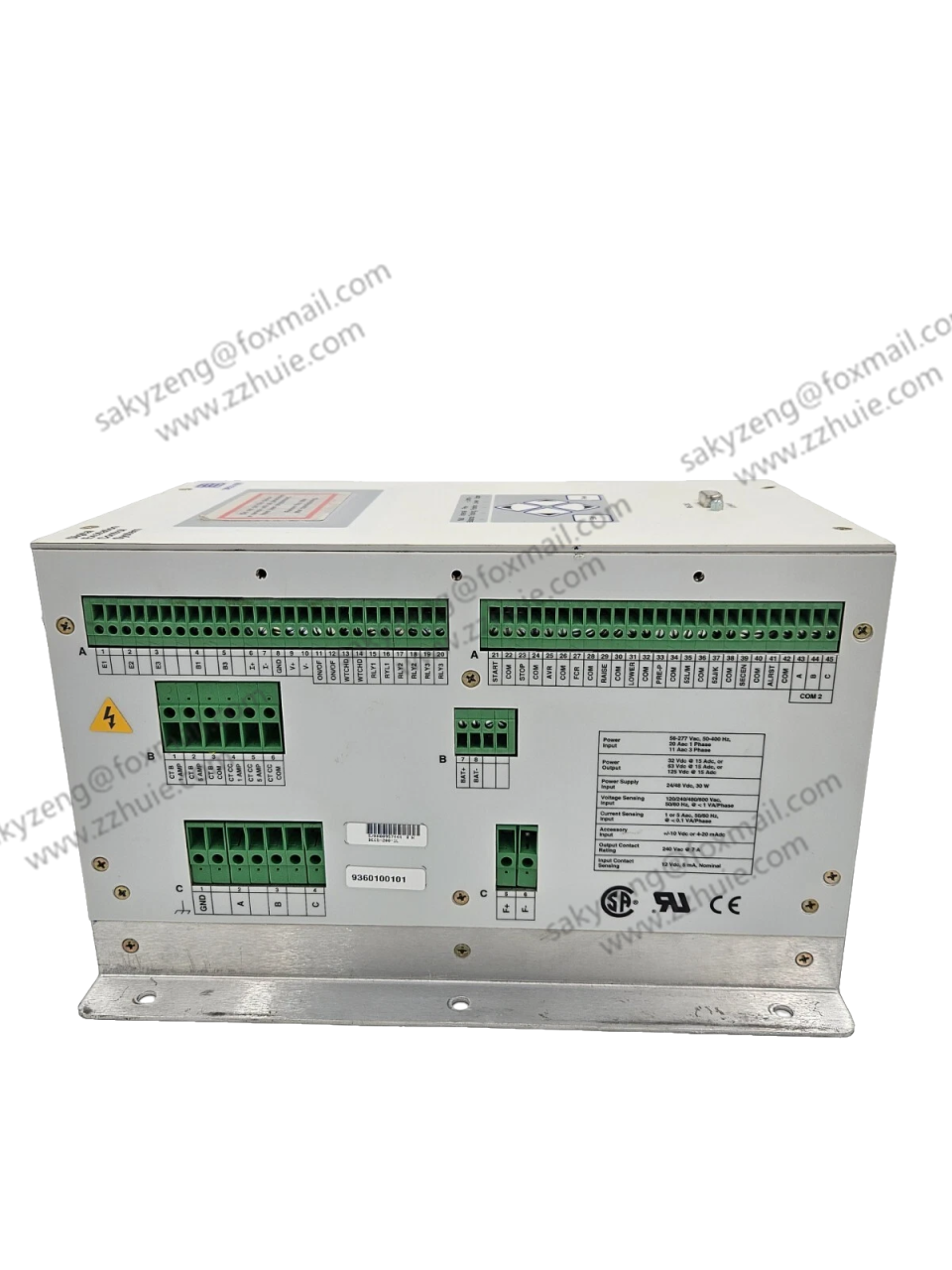

BASLER ELECTRIC DECS-200-1L controller

                                                       BASLER ELECTRIC DECS-200-1L

E-mail:sakyzeng@foxmail.com

WeChat: 18020721390

The DECS-200-1L is a digital excitation control system that can be used to control generators of virtually any size. It has a pulse width modulated power stage that helps improve system performance in non-linear load applications. The system can be set up using the front panel HMI or by PC with Windows® setup software included. It has 20 standard stability selections plus a user customizable stability selection and autotracking between operating modes standard (between DECS-200 units optional).

DECS 200 Digital AVR Characteristics

The DECS-200 offers all the features together

with flexibility and programmability expected

from one of today’s latest state-of-the-art

microprocessor based products. The DECS

200 is a total excitation control system in one

enclosure and contains all the functionality

necessary to limit, control, and protect a motor

or generator from operating outside of the

machine’s capability. This gives the DECS

200 the possibility to be installed in all

conceivable applications on virtually any size

of machine.

DECS 200 STANDARD FEATURES

. Microprocessor-based design . True RMS sensing, single or three phase

. Up to 125Vdc output at 15Adc . 0.25% Voltage Regulation Accuracy

. 20 standard stability selections . User customizable stability selection

. Paralleling compensation . U/F compensation or V/Hz Ratio Limiter

. Soft start build-up . FCR Mode (Built in Manual Mode)

. Auto tracking between operating modes . Auto tracking between 2 DECS-200 units

. Minimum Excitation Limiter . On and off-line Maximum Excitation Limiters

. Stator Current Limiter . Var and Power Factor Controllers

. Exciter Diode Monitoring (EDM) . Sequence of Events Recording

. Oscillography . Voltage Matching

. Eight generator protection features . Programmable output contacts

. Front panel backlit LCD display . Front panel mounted RS-232 comm port

. Side panel mounted RS-485 comm port . Modbus. protocol for RS-485 up to 1km

. Setup from front panel HMI or by PC with free BESTCOMS user friendly setting software.
