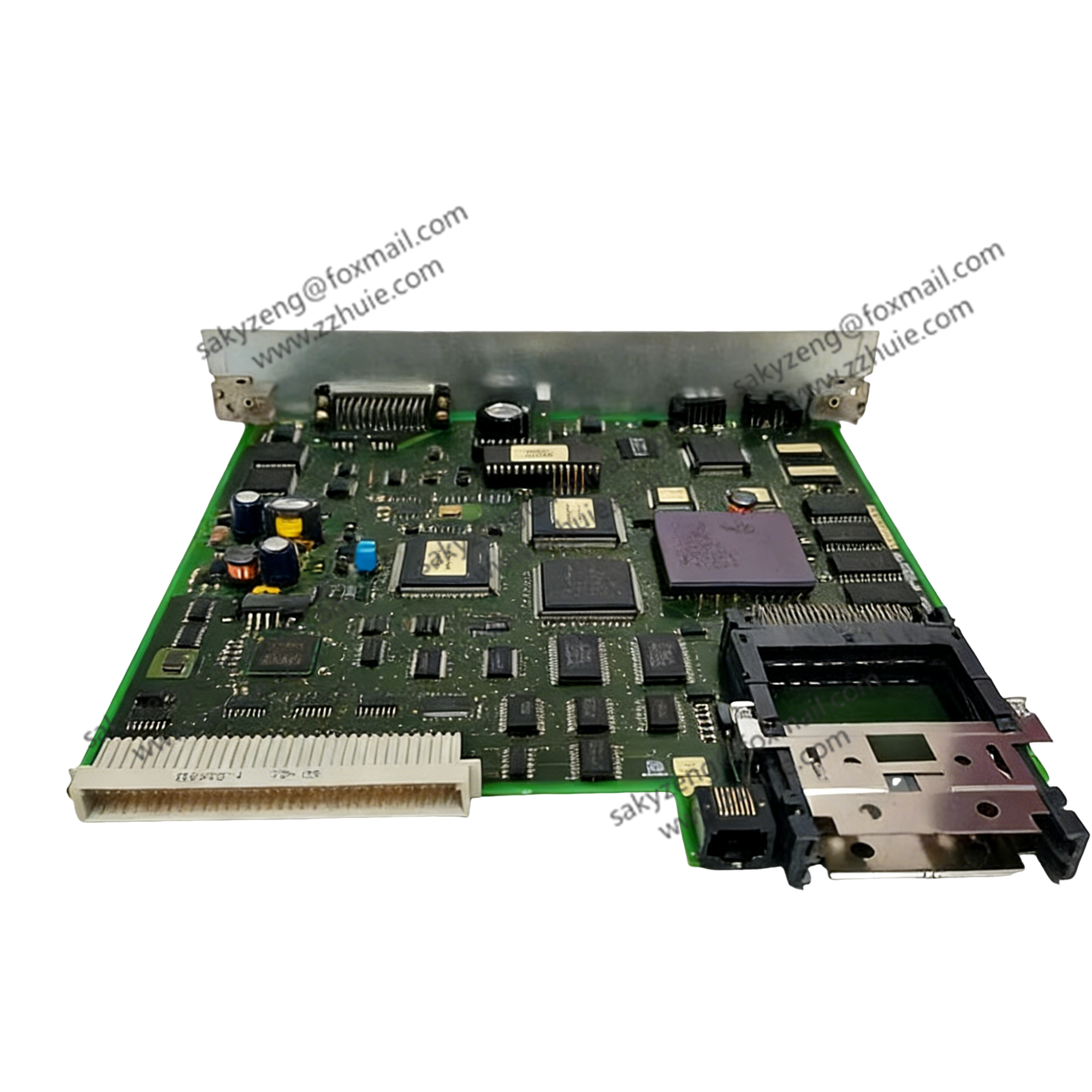

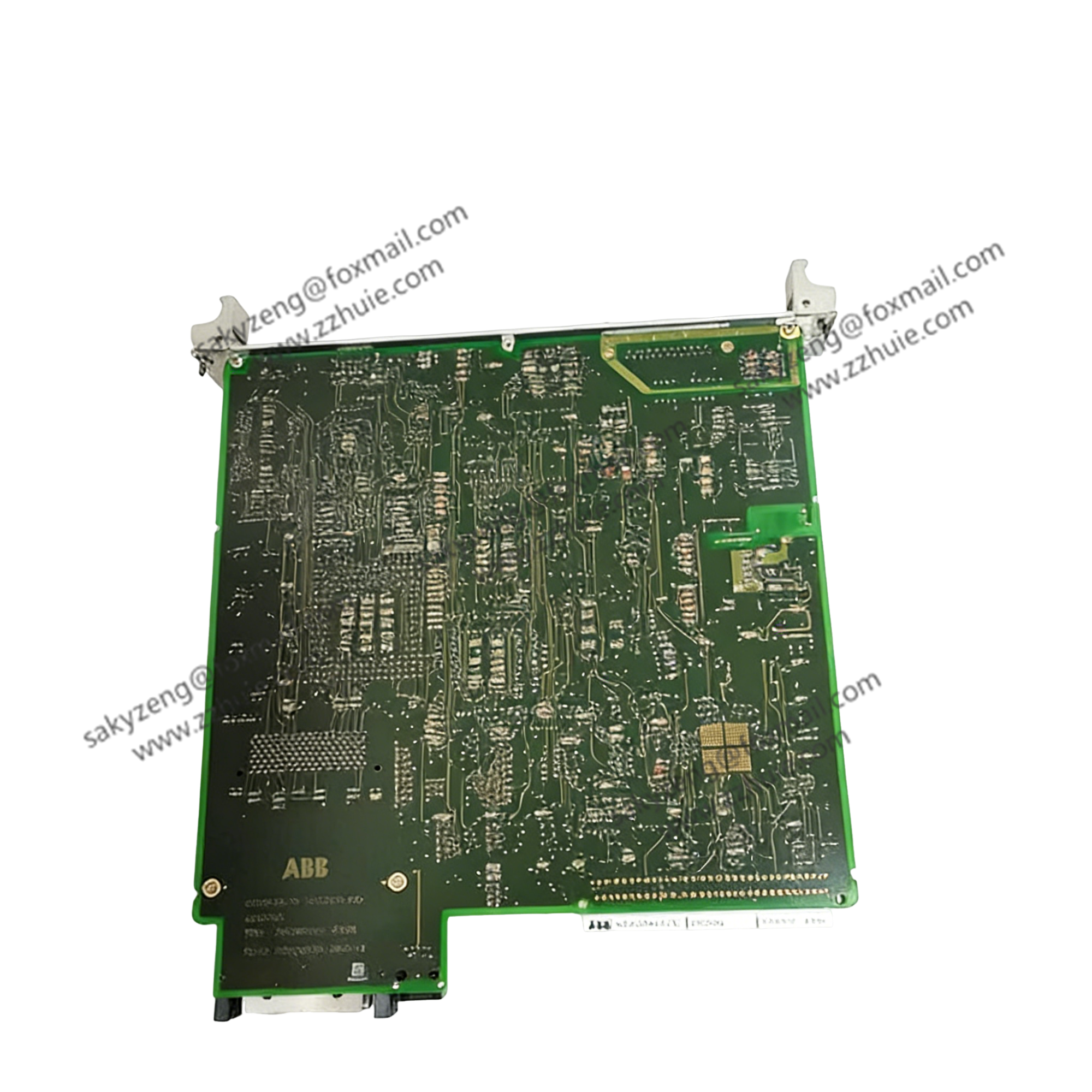

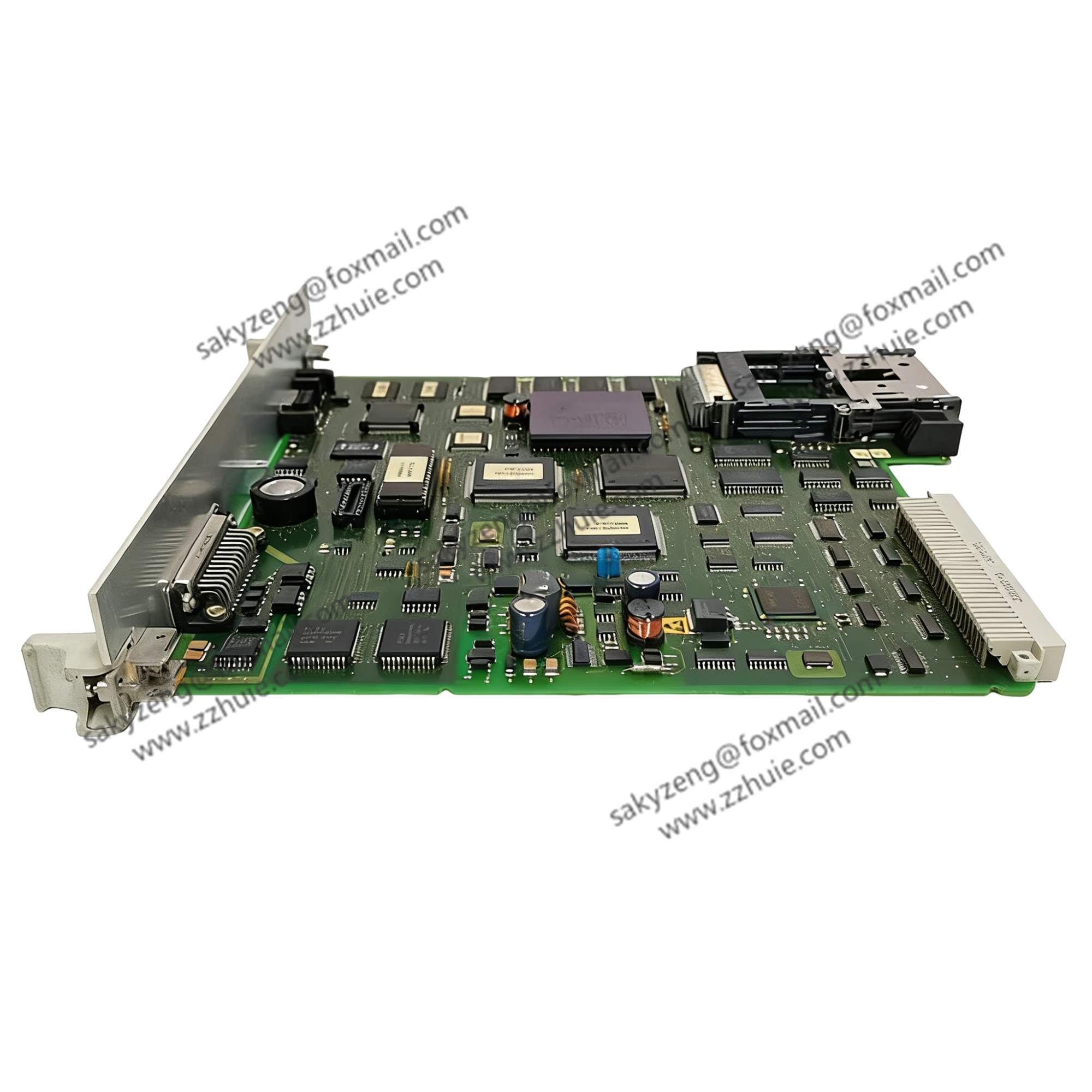

ABB 216VC62A HESG324442R112/F Digital Signal Processing

Part Number: 216VC62A, HESG324442R112/F

Product Type: Digital Signal Processing Module / Analog Input Module

Product Series: ABB REG216 Digital Control System

Processor: 1.2 GHz High-performance DSP

Memory: 1MB Flash Memory + EPROM Slot

Input Channels: 8 Differential Analog Inputs; 2 channels per isolated group

Input Signal Types:

Thermocouple: J, K, T, E, R, S, B, N

RTD: Pt100, Pt1000, Cu50, Cu100

Current: 4-20mA, 0-20mA

Voltage: 1-5V, 0-10V

Resolution: 24-bit ADC

Measurement Accuracy:

Thermocouple: ±0.1°C (0-1000°C)

RTD: ±0.05°C (0-200°C)

Current/Voltage: ±0.02% FS

Isolation Voltage: 2500V AC (channel-group), 1500V AC (channel-bus)

Power Supply: +5V, +24V (module bus)

Power Consumption: 1.1W

Operating Temperature: -40°C to +70°C

Protection: Short-circuit, PTC overcurrent, EMC (IEC 61000-4)

Communication Protocols: PROFIBUS, Modbus TCP, HART, RS-485

Applications: Power system protection, substation automation, industrial process control, power generation monitoring

Condition: New / Refurbished Available

Warranty: 1 Year
