GE IS220PTURH1B modular

Brand: GE

Model: GE IS220PTURH1B modular

Origin: Switzerland

Warranty: 365 days

Quality: new/second-hand

Delivery method: express delivery

Telephone :+86 18020721390

WeChat:+86 18020721390Email:sakyzeng@foxmail.com

product details

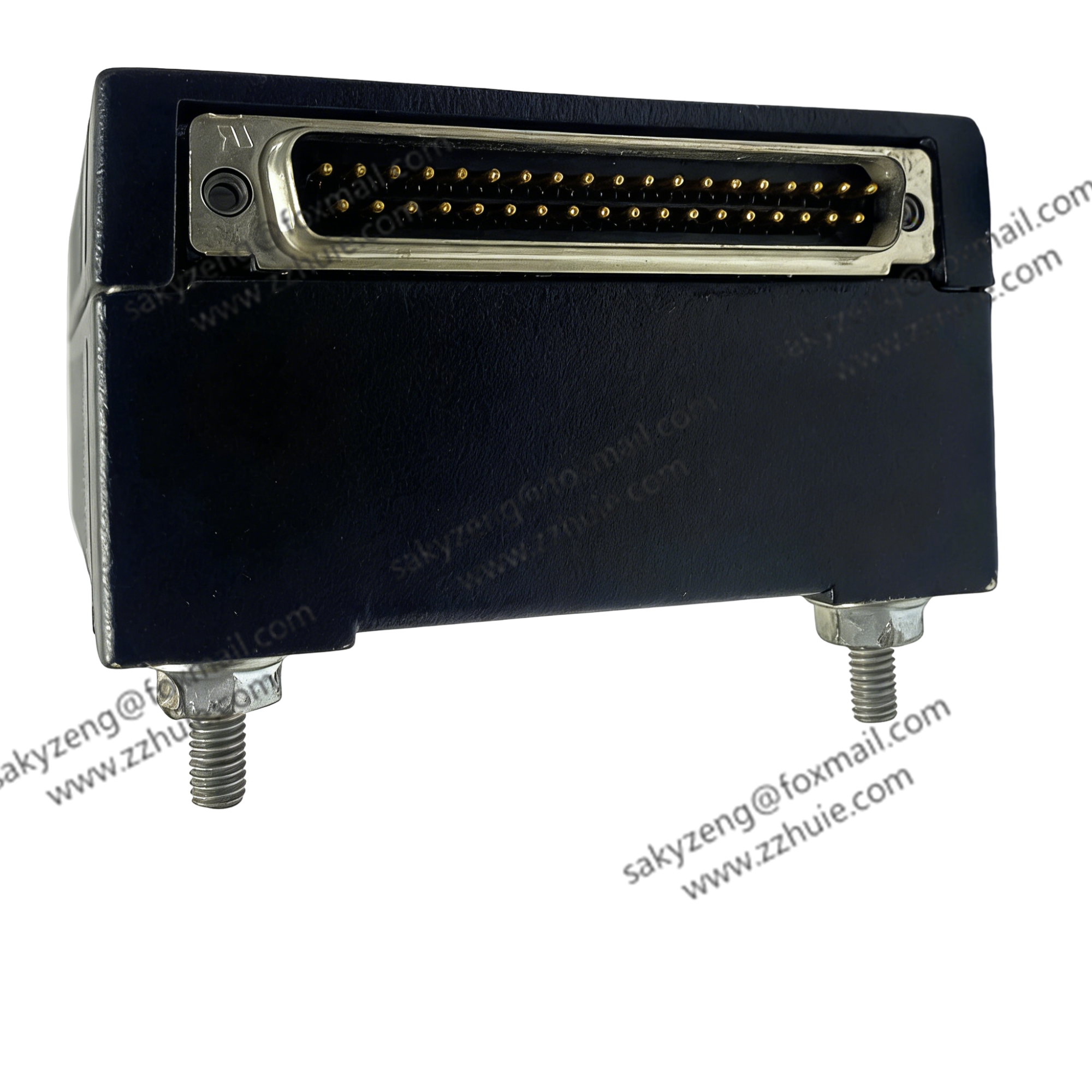

The IS220PTURH1B is a component created by GE for their Mark VI system, which is one of the final Speedtronic systems for gas/steam turbine management that was released by GE. It is a Primary Turbine Specific Primary Trip pack that provides an electrical interface between a turbine control terminal board and either one or two Ethernet networks. Outputs from this pack occur through a DC-62 pin connector that connects to an associated terminal board. The component has an interface with four passive, magnetic speed inputs and allows for Auto-reconfiguration, which will automatically download from the controller to the I/O pack.


The IS220PTURH1A PDF is a component created by GE for their Mark VI system.  The Mark VI is one of the final Speedtronic systems for gas/steam turbine management that was released by GE.

E-mail:sakyzeng@foxmail.com

WeChat: 18020721390


The MVME162-530A is a single-board computer (SBC) that implements a Motorola 68040 or MC68LC040 CPU with memory management and floating-point units embedded (only in 68040 models). It is a 6U VME board that comes equipped with most of the I/O needed for a full computer [0]. The MVME162 series has various models with different onboard options such as speed, memory, Ethernet ports, etc.


To work with the MVME162-530A, you can refer to the manuals and installation guides available online [2][3]. These documents provide detailed information on hardware preparation, installation, and configuration. Additionally, you can find connection diagrams for different interfaces such as EIA-232-D, EIA-530 DCE, and DTE configurations.

The IS220PTURH1A is a Primary Turbine Specific Primary Trip pack.  This component provides an electrical interface between a turbine control terminal board and either one or two Ethernet networks.  Outputs from this pack occur through a DC-62 pin connector that connects to an associated terminal board.PDF

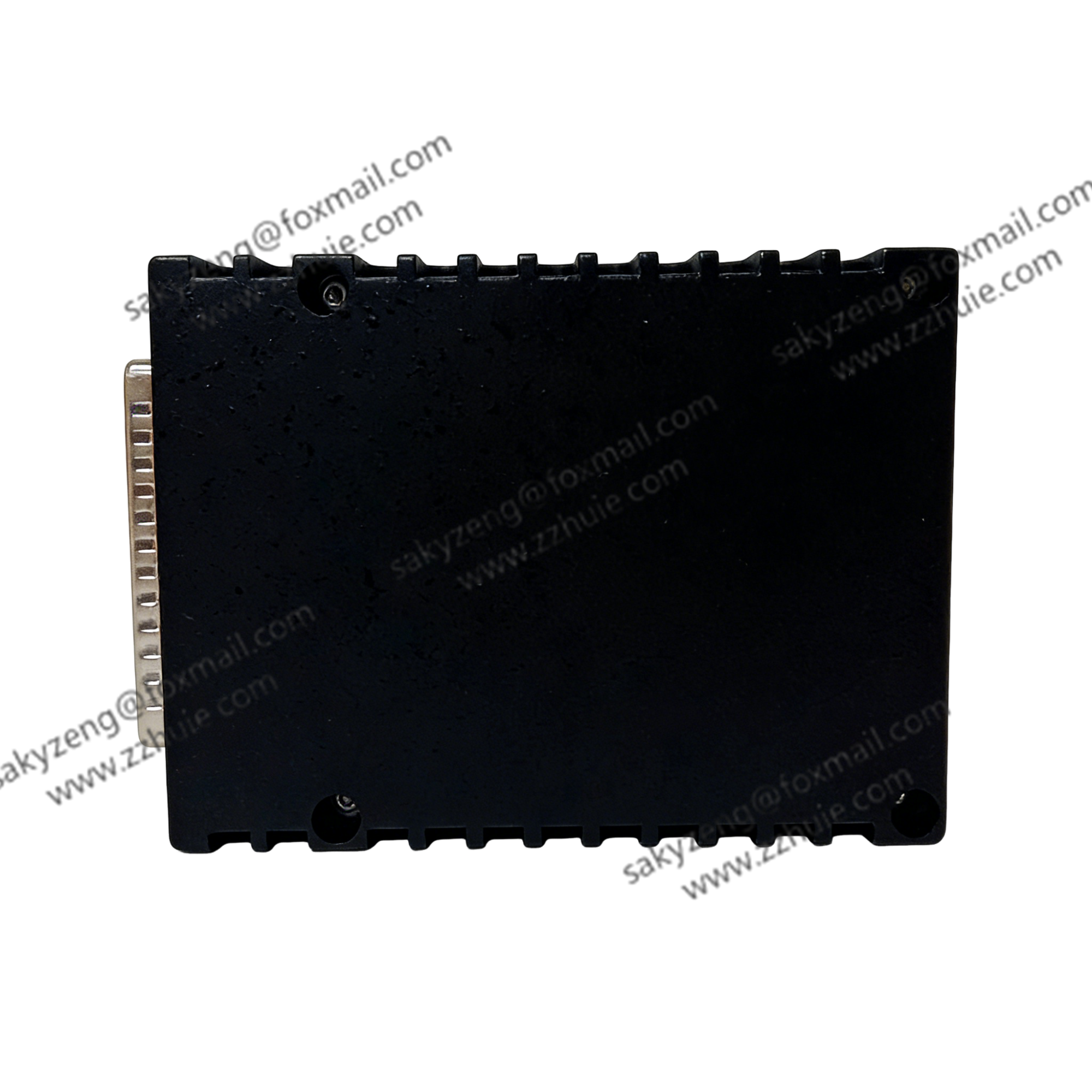

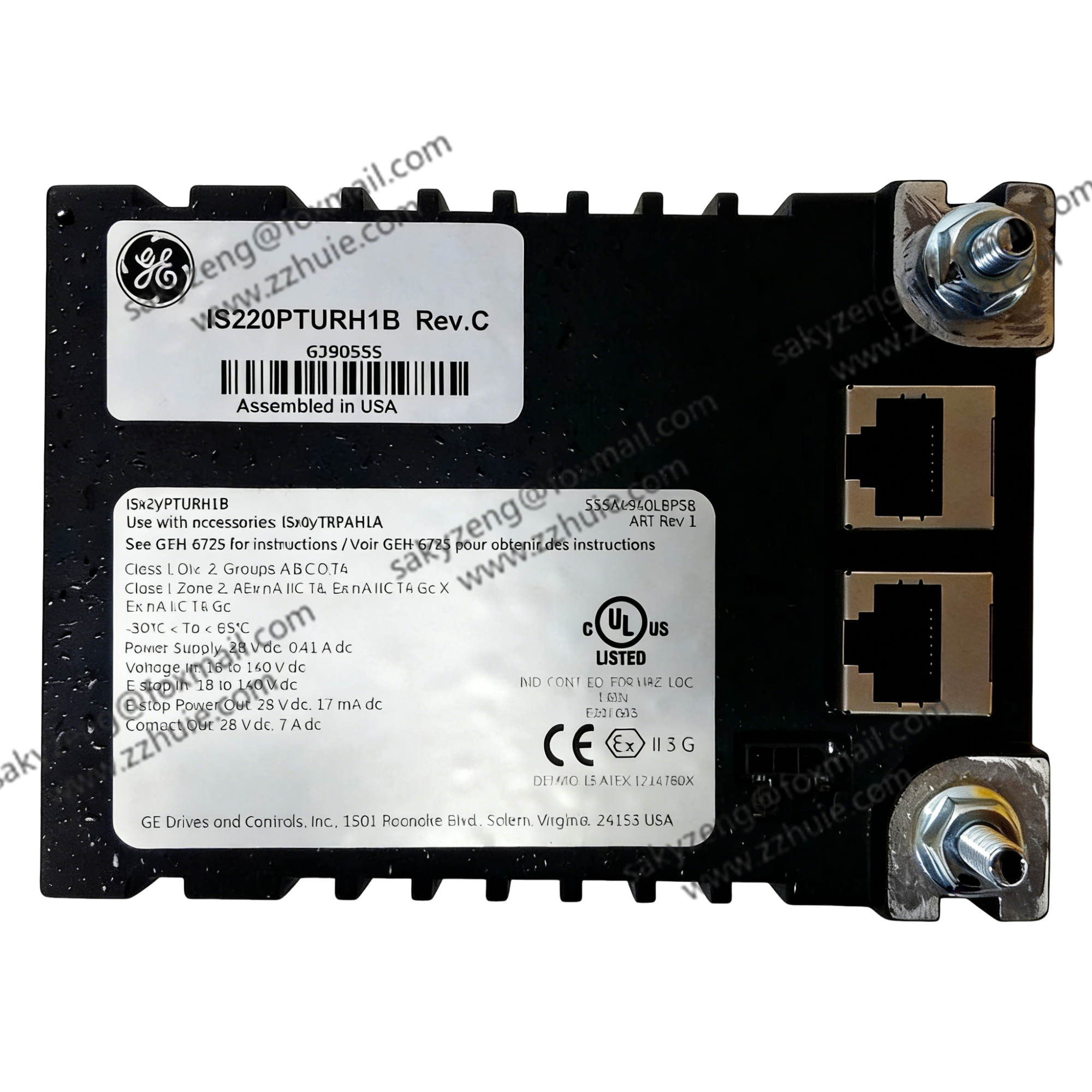

The IS220PTURH1A is built with a black outside casing with openings for air circulation.  The front of this case has multiple LED indicators, as well as an IR (infrared port.) This port is not used in this pack.  Inside this casing, there is a processor board, a second board specific to turbine control, and an analog acquisition auxiliary board.   The pack mounts to the TTURH1C terminal board. The processor board has two 10/100 Ethernet ports, flash memory, and RAM, a read-only chip for identification, an internal temperature sensor, and a reset circuit.


The IS220PTURH1A allows for Auto-reconfiguration, which will automatically download from the controller to the I/O pack.  The reconfiguration includes baseload, bootload, firmware, and parameters. Auto-reconfiguration must be enabled for this to occur.  This is enabled or disabled in the Toolbox ST application through the Component Editor.


The IS220PTURH1A has an interface with four passive, magnetic speed inputs.  Circuit sensitivity can allow detection of 2-RPM turning gear speed to determine if the turbine has dropped to zero speed (turbine has stopped.)  The median speed signal on the pack is used for speed control and for primary overspeed trip signal. Consult manuals or datasheets from the manufacturer if you need more information
