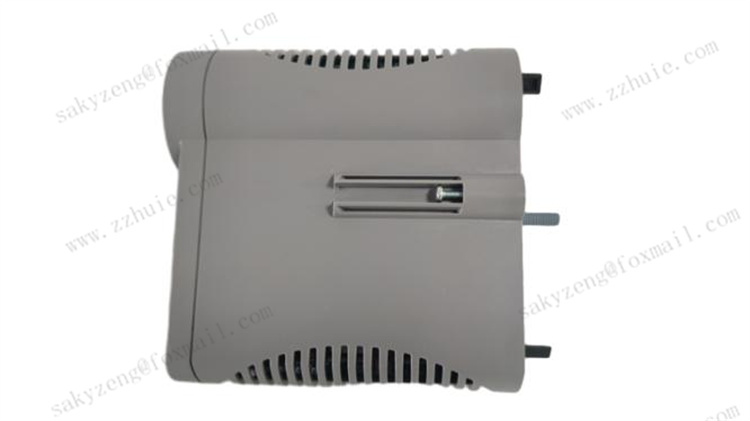

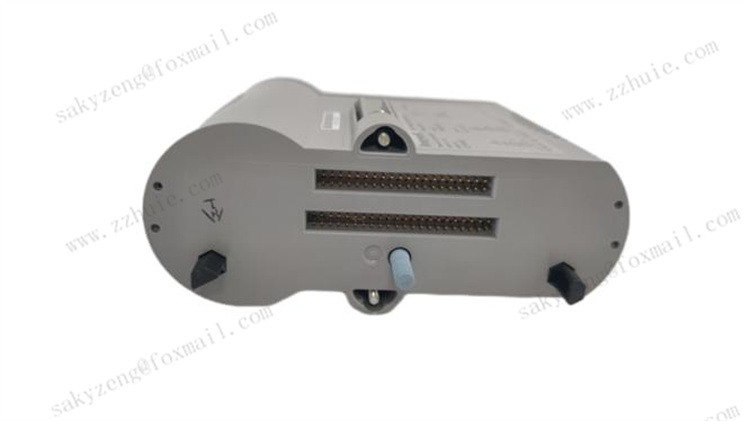

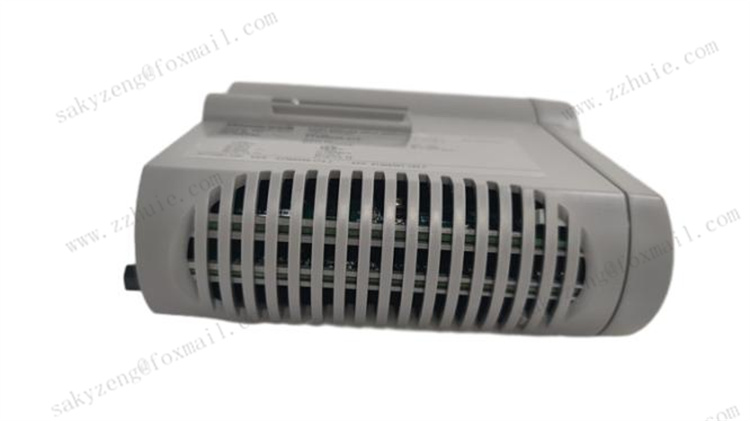

Honeywell CC-PAIH02 | Supports 16 input channels

Product Description

· The CC-PAIH02 module is capable of accepting voltage and current inputs and supports various input types, including 2-wire or self powered transmitters.

· The significant features of this module include extensive self diagnosis, optional redundancy, fast loop scanning, and the ability to provide non flammable on-site power.

· Provide 16 input channels, supporting single ended and differential configurations. It has a common mode rejection ratio of 70 dB and a resolution of 16 bits, ensuring accurate and reliable data acquisition. The input range varies depending on the input type (e.g. 0 to 5V, 1 to 5V, 0.4 to 2V, 4-20mA), allowing for flexible connection of different types of sensors.

· When used with CC-TAIDx1 IOTA, CC-PAIH02 supports voltage inputs for channels 1-16. This setting allows configuring 250 ohm load resistors for each channel through jumper wires on IOTA.

· Designed for operation within Class 1, Zone 2 non flammable regulations to ensure safety compliance in hazardous locations. In addition, it also has a separately protected current limiting circuit for connecting to Class 1, Class 2 non flammable equipment without the need for external fuses.

cc-paih02 وحدة قادرة على قبول المدخلات الجهد والحالية ، وتدعم أنواع مختلفة من المدخلات ، بما في ذلك 2 خطوط أو محولات الطاقة الذاتية .

Модуль CC - PAIH02 способен принимать вход напряжения и тока и поддерживает различные типы входов, включая 2 - проводные или самоподдерживающиеся

преобразователи.

On service

· Warranty period: New 12 months

· Delivery time: 2 weeks for shipment

· Transportation: Major courier partners such as DHL, UPS, TNT, FedEx, and EMS.

· Import tariffs and taxes are not included in the price of goods or transportation costs. The cost shall be borne by the buyer. Please confirm the inspection fees with customs before placing an order to determine these additional charges.

· Shipping location: Guizhou, China
