KUKA KSD1-16 00-122-285 | Servo drive module

Product Introduction

KSD1-16 00-122-285refers to a servo drive module for a KUKA KR C2 robot control cabinet. It can be used to replace defective equipment.

The servo drive module is rated based on its power output in Amps. The KUKA robots are equipped with the KR C2 controller, where the control

and power electronics are integrated into a common control cabinet. The servo drives are powered by the KUKA power supply and controlled via the

digital servo electronics with an Interbus interface. The KUKA system conforms to safety requirements specified in ISO 10218 and has a powerful continuous-path

control system for basic and external axes. It also has various special functions for automating the robot periphery.

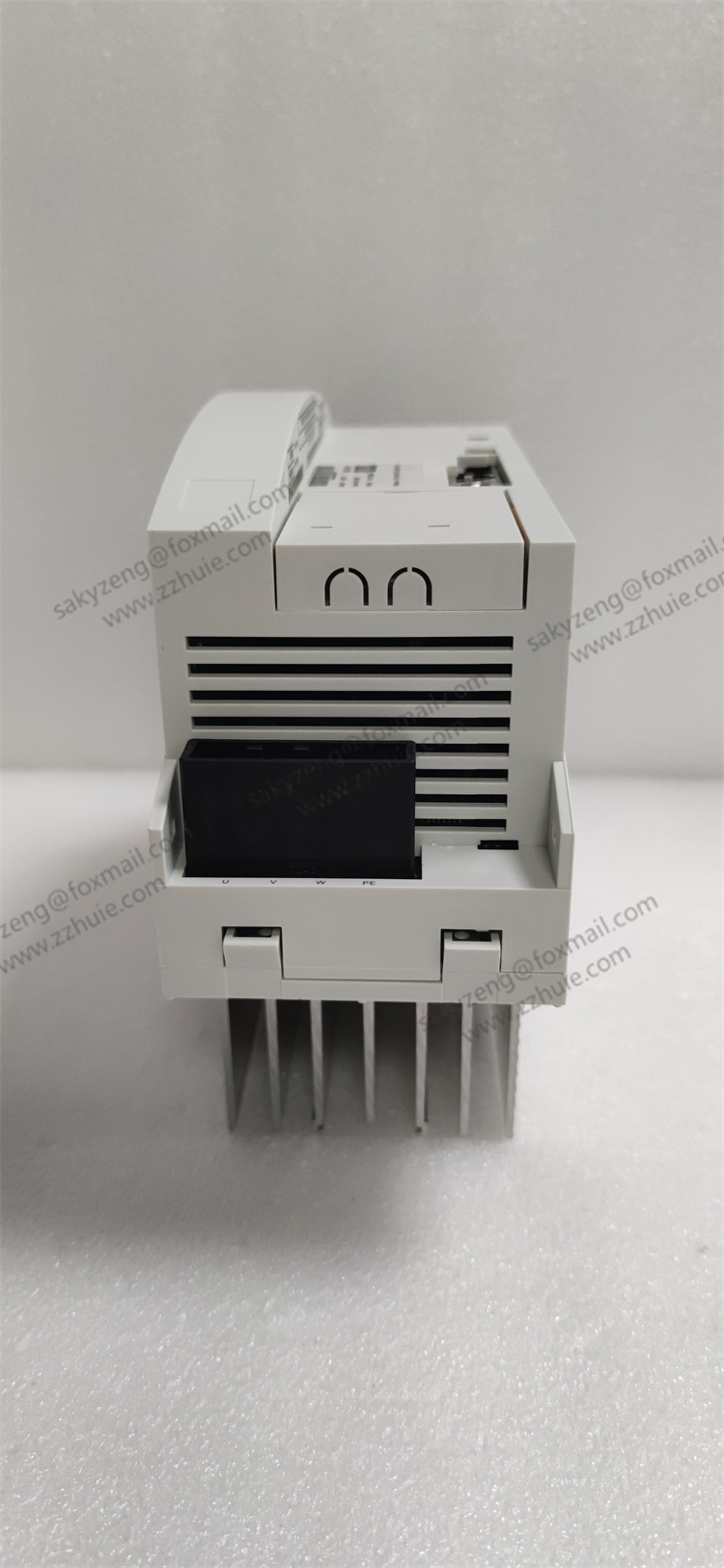

KUKA KSD1-16 00-122-285 servo drive

KUKA KSD1-16 00-122-285 is used for robot control system, operation control debugging mechanism in safe environment

KUKA KSD1-16 00-122-285 is a servo drive unit that powers the axes of specific size and type KUKA servo motors. It is used for the KUKA KR C2

robot control cabinet. The unit can be replaced if it is defective. The servo drive has features such as an Interbus interface for the drive bus, monitoring

of the motor current and short-circuit protection, heat sink temperature monitoring, and communication monitoring.

E-mail:sakyzeng@foxmail.com

WeChat: 18020721390

· Warranty period: 12 months

· Delivery time: 2 weeks for shipment

· Shipping location: Guizhou
