VMIVME-7452 | GE Single Slot VMEbus Floppy/Hard Disk Module

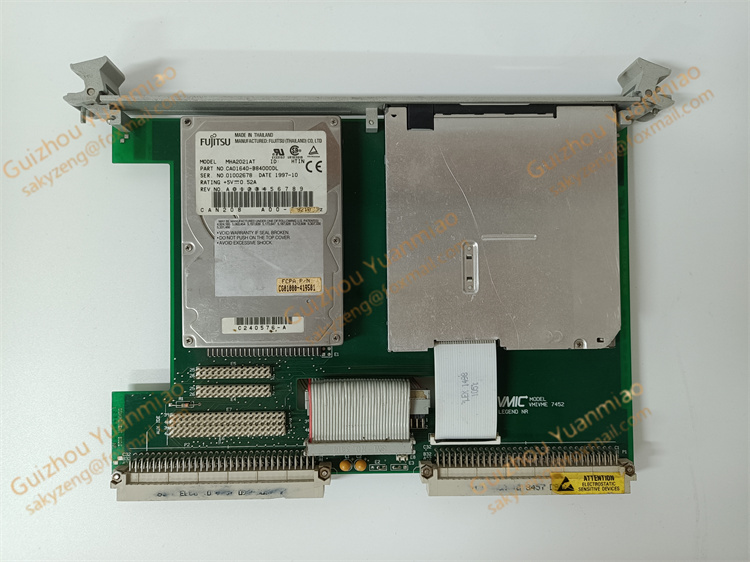

GE VMIVME-7452 is a single slot VMEbus floppy/hard disk module

· Physical dimensions: Standard VME dual high European card (one slot), with dimensions of 160x233.25x20.32 millimeters.

· User connectors: There are 34 pin floppy drive connectors and 40 pin IDE connectors.

· Power supply: DC input voltage commercial 5V ± 10%, 3.3V ± 5%.

· Power consumption: 200 µ A at 3.3V and 500 µ A at 5.0V during sleep mode; When reading, 32 to 80mA at 3.3V and 46 to 120mA at 5.0V; When writing, 32 to 80mA

at 3.3V and 46 to 120mA at 5.0V.

· Flash drive system performance: Flash data transfer rate of 4.0Mbyte/s (burst), data transfer rate from flash of 6.0Mbyte/s (burst), maximum 2.5 milliseconds from sleep

to write, maximum 2.0 milliseconds from sleep to read, typical value of 50 milliseconds for reset to ready, maximum value of 400 milliseconds.

purpose

Industrial automation: It can serve as a storage device in industrial automation systems, used to store critical data, program code, and configuration files during the

production process, ensuring data security and accessibility. It plays an important role in the control, monitoring, and data recording of automated production lines.
