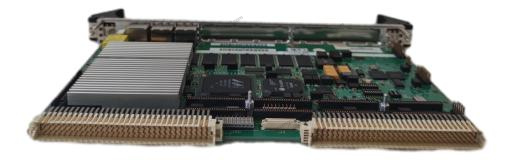

Motorola MVME6100-0161 | High performance embedded single board computer module

The Motorola MVME6100 is a high-performance embedded single board computer module launched by Motorola (now Freescale Semiconductor), designed for harsh

scenarios such as industrial automation, communications, military, and aerospace. The core description is as follows:

1. Core hardware configuration

Processor: Equipped with * * MPC7457 PowerPC processor * *, with a clock speed of 1.267 GHz, supporting complex calculations and real-time control tasks

Memory and Storage: Comes standard with 1GB ECC protected DDR DRAM * * (expandable up to 2GB), paired with * * 128MB flash memory to ensure high-speed processing

of large capacity data

System Controller: Integrated with MV64360 System Controller and Tsi148 VMEBridge ASIC to optimize bus communication efficiency

2. Interface and Expansion Capability

Communication interface: Provides * * dual Gigabit Ethernet interface * *, serial port, USB, etc., supporting high-speed data exchange and remote control

VME bus integration: compatible with the VME bus standard through VMEBridge ASIC, adapted to industrial control system architecture

3. Operating System and Development Support

Compatible system: Supports real-time operating systems such as VxWorks and Linux, providing a stable development environment and rich API tools

Programming flexibility: adaptable to multiple programming languages, built-in debugging interfaces and firmware tools (such as MOTLoad command), easy to configure

and maintain the system

4. High reliability design

Environmental tolerance: Adopting industrial grade anti-interference design, supporting wide temperature operation from -40 ℃ to 85 ℃, earthquake and dust resistance,

and adapting to harsh industrial environments

Redundancy and Protection: The power supply supports 12-36VDC redundant input and has built-in overload protection; VME configuration provides fault tolerance

mechanism to reduce system failure risk

5. Typical application scenarios

Industrial automation: used for CNC machine tools, production line control, and robot systems.

Key infrastructure: power monitoring, rail transit signal system, aerospace equipment.

Military field: weapon control systems, battlefield communication equipment

Physical and installation parameters

Structural dimensions: Compact single slot design, supports rail or wall mounting, simplifies deployment process [3] (@ ref).

Power management: 24VDC redundant input, built-in reverse protection to ensure stable power supply
