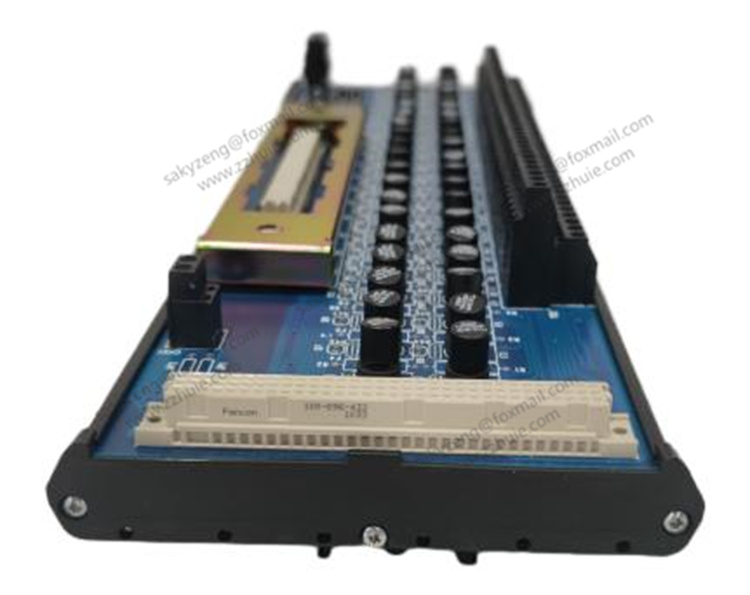

ICS Triplex T8800C PD8800 PCB130100 | Analog Input/Output Module

· ICS Triplex T8800C

· Name: Analog Input/Output Module.

· Parameters: System power supply voltage range of 20 to 32Vdc; Monitoring output quantity of 40 channels; Work output/on-site voltage range 18 to 60V DC; The

measurement range of output voltage is 0 to 60V DC, with a tolerance of -1 to 60V DC. The rated output current (continuous) is 0.75A per channel and 6A per power pack;

On state load current of 25mA, output off state resistance of 33k Ω; Output conduction state resistance 0.6 Ω; Output short circuit protection is electronic (locked); Channel

crosstalk>-40dB; In terms of power consumption, the on-site power supply of 24V (0.75A per channel) is 18W, and the system power supply (24V) is 22W.
