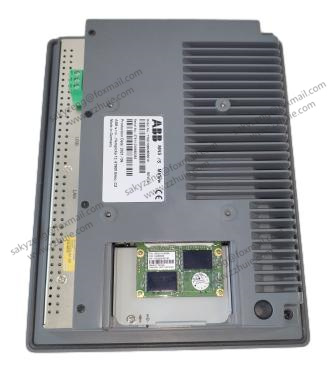

ABB 1TGE120028R0010 | Human machine system interface

· ABB 1TGE120028R0010 human-machine system interface or touch screen human-machine interface.

· Electrical parameters

· Power supply voltage: 100-240VAC~50/60Hz

· External power supply: Max.12VDC ± 10%, 100mA

· Display parameters

· Display mode: 6-digit 7-segment LED

· Action parameters

· Action mode: The counter includes up counting, down counting, and up/down counting; The timer has an up timer and a down timer

· Output action: SIGNAL ON DELAY、POWER ON DELAY、FLICKER、INTERVAL、SIGNAL OFF DELAY、ON-OFF DELAY、INTEGRATION TIME

· Counting and timing parameters

· Maximum counting speed: 1, 30, 1k, 5k, 10k (CPS)

· Minimum signal width: 1ms/20ms

· Power outage compensation: about 10 years

· Setting range: 0.001 sec~9.999 sec, 0.01 sec~99.99 sec, 0.1 sec~999.9 sec, 1 sec~9999 sec, 1 sec~99 min 59 sec, 0.1 min~999.9 min, 1 min~9999 min, 1 min~99 hour 59 min,

1 hour~9999 hour

· Control output parameters

· Control output type: 2-segment setting

· Control output relay: SPST（1a）:1，SPDT（1c）:1

· Control output NPN collector open circuit: 3

· Environmental parameters

· Environmental temperature: -10~55 ℃, storage time: -25~65 ℃

· Environmental humidity: 35-85% RH, 35-85% RH during storage

· Other parameters

· Protection level: IP65 (front panel)

· Weight: Approximately 322g
