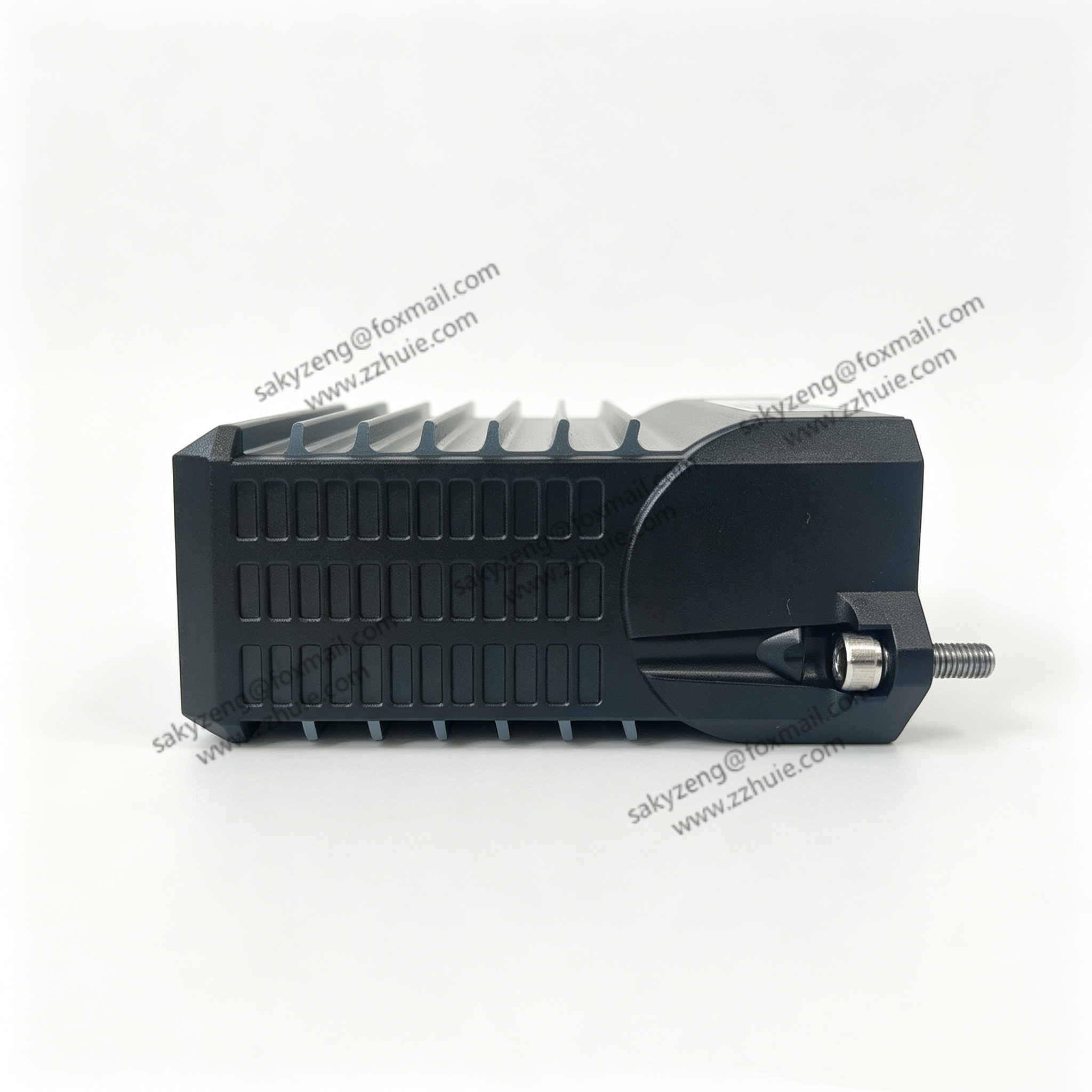

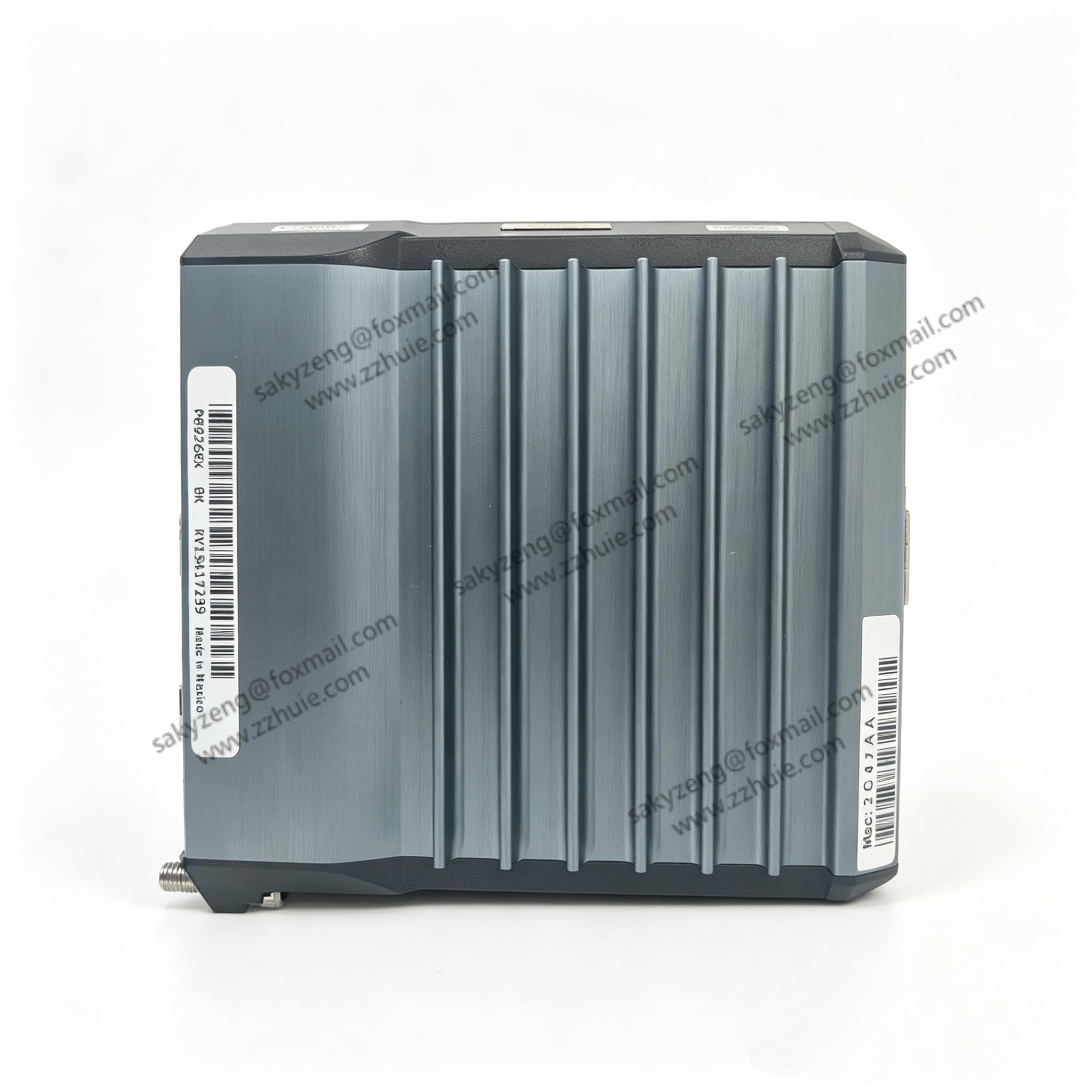

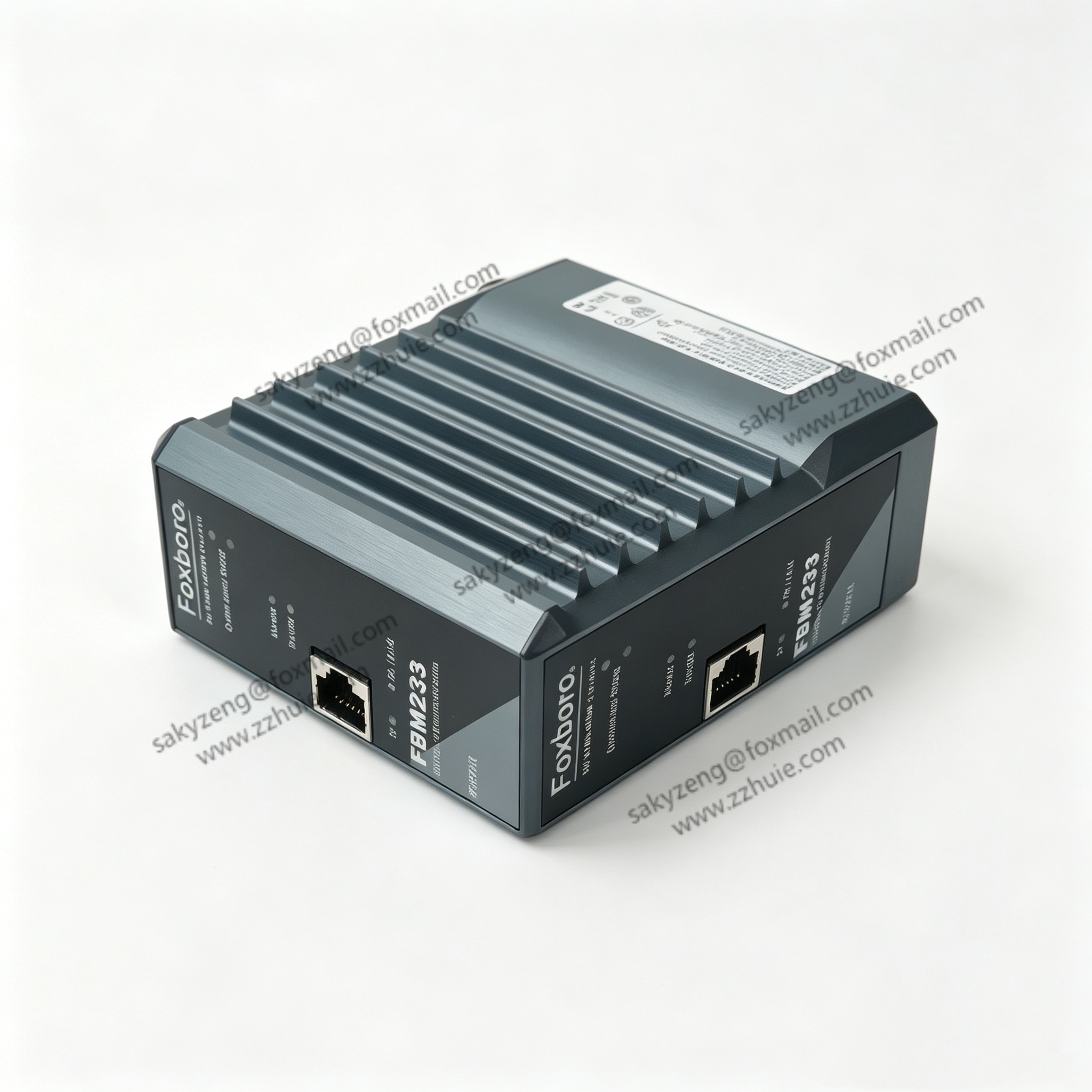

Foxboro FBM233 modular

CONTROL BLOCK SUPPORT

The FBM233 offers control block support for the

following standard Foxboro Evo Distributed Control

Interface (DCI) block types:

The DCI blocks are configured just like other Foxboro

Evo control blocks. The DCI blocks address and

read/write data from/to the addressed field device.

COMPACT, RUGGED DESIGN

The FBM233 has a compact design, with a rugged

extruded aluminum exterior for physical and electrical

protection of the circuits. Enclosures, specially

designed for mounting the FBMs, provide various

levels of environmental protection, up to Class G3

harsh environments per ISA Standard S71.04.

HIGH RELIABILITY

The redundancy of the module pair, coupled with the

high coverage of faults, provides very high

subsystem availability time.

Either module may be replaced without upsetting

field input or output signals to the other module. A

module can be removed or replaced without

removing power to the other FBM modules in the

Modular Baseplate.

MODULAR BASEPLATE MOUNTING

The module mounts on a Modular Baseplate, which

accommodates up to four or eight FBMs. The

Modular Baseplate is either DIN rail mounted or rack

mounted. The Modular Baseplate includes signal

connectors for the FBMs, provides connections for

independent dc power supplies, I/O cable

connections, 2 Mbps Module Fieldbus connections.

Redundant modules must be located in odd and

adjacent even positions on the baseplate (positions 1

and 2, 3 and 4, 5 and 6, or 7 and 8).

FIELDBUS COMMUNICATION

The Fieldbus Communication Module (FCM100Et or

FCM100E) or the Field Control Processor (FCP270 or

FCP280) interface the redundant 2 Mbps module

Fieldbus used by the FBMs. The FBM233 accepts

communication from either path of the 2 Mbps

module Fieldbus - should one path fail or be

switched at the system level, the module continues

communication over the active path.

VISUAL INDICATORS

Light-emitting diodes (LEDs) incorporated into the

front of the module provide visual indication of the

module’s operational status, and the communication

activity (Transmit or Receive) of the Ethernet ports.

Two additional LEDs provide the master or tracker

status of the modules.
