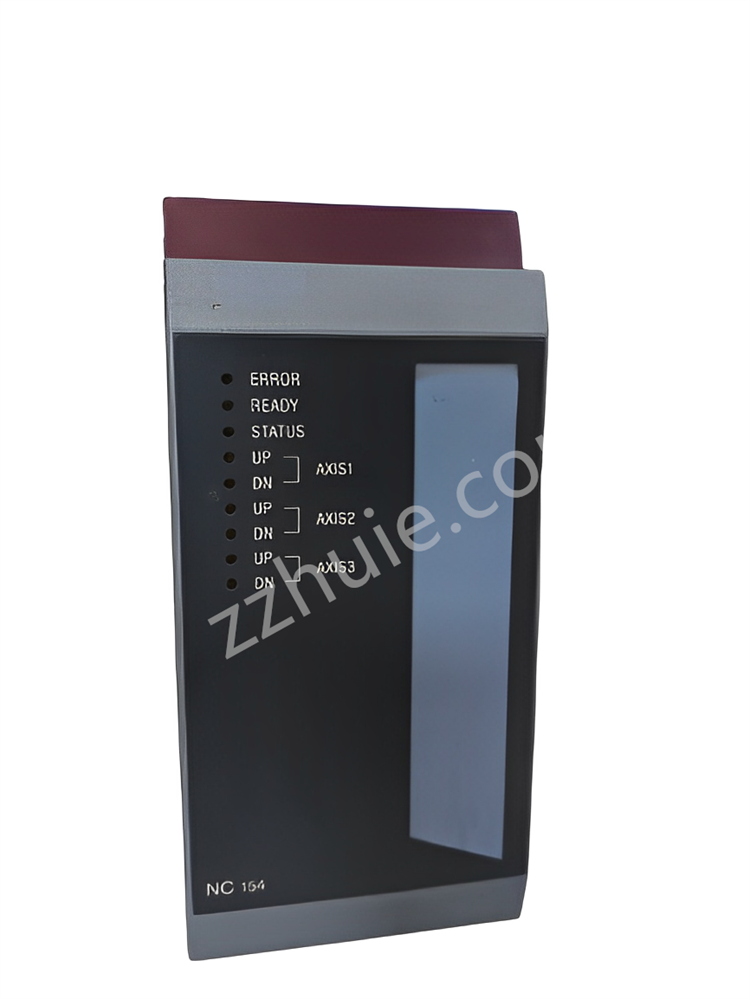

B&R 3NC154.60-2 CPU | Active axis controller for servo axis

Product Description:

B&R 3NC154.60-2 is a positioning module used in industrial automation systems. It is part of the B&R SYSTEM 2005 series and can serve as the active axis controller

for up to three servo axes.

·Supports incremental or absolute encoders (both electrically isolated).

·Provide ± 10V servo output with a resolution of 12 bits.

·Including digital sampling controllers for precise position control.

·Support limit switch output for each axis.

·Allow reference switch input.

·Three quick trigger inputs can be used to lock the actual position of the measurement.

·Each axis has five digital inputs (24VDC, sink type).

·One relay output per axis (24VAC/VDC, 1A).

·Including error, ready, status, up, and DN indicai amen Xin our in
